Weidmuller

EV Charger

Regular price 20,000.00 ฿
Sale price 20,000.00 ฿ Regular price 100.00 ฿
Unit price
Key Features:

✔️ Reliable Performance – Engineered for consistent operation in all conditions
✔️ Certified Safety – Complies with international standards (CE, ISO, etc.)
✔️ Seamless Integration – Easily connects with existing systems
✔️ Durable & Long-Lasting – Designed to withstand heavy-duty use
✔️ Smart Monitoring – Track performance and efficiency easily
✔️ Technical Support – Expert guidance whenever you need it

Ask a question

Ask a Question

* Required fields

Size guide Share

Guarantee safe & secure checkout

EV Charger

EV Charger

Product Description
Product Specification
Product reviews

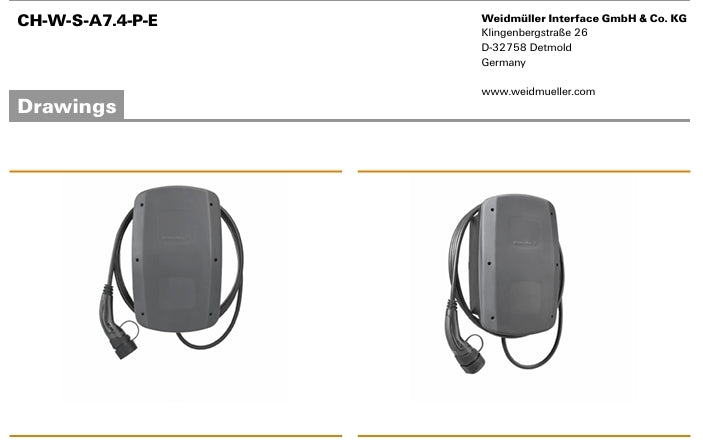

EV Charger

Wallbox, max. charging capacity of 7.4 kW @ 1
phase (230 V) grid connection, max. current 32 A,
With attached 5 m cable and type 2 plug, Mobile App

Temperatures
Storage temperature-40 °C...70 °C Operating temperature-30 °C...50 °C
Operating temperature, min.-30 °C Operating temperature, max. 50 °C
Humidity 5 - 95% rel. humidity

Material data

Max. relative humidity during storage 95 % Operating temperature, max. 50 °C
Operating temperature, min.-30 °C Storage temperature, max. 70 °C
Storage temperature, min.-40 °C

 Performance specification Number of phases input 1
 Input voltage type AC

Input voltage 230 V
Input current, max. 32 A

Charging power, max 7.4 kW
Adjustment accuracy 1 A
Charging current adjustable Yes
Charging current, min 6 A
Performance specification max. charging capacity of 7.4 kW @ 1-phase (230 V) grid connection, max. current 32 A

Depth 150 mm Depth (inches) 5.905 inch
Height 433 mm Height (inches) 17.047 inch
Width 268 mm Width (inches) 10.551 inch
Net weight 5,009 g

EV Charger

Wallbox, max. charging capacity of 7.4 kW @ 1
phase (230 V) grid connection, max. current 32 A,
With attached 5 m cable and type 2 plug, Mobile App

Temperatures
Storage temperature-40 °C...70 °C Operating temperature-30 °C...50 °C
Operating temperature, min.-30 °C Operating temperature, max. 50 °C
Humidity 5 - 95% rel. humidity

Material data

Max. relative humidity during storage 95 % Operating temperature, max. 50 °C
Operating temperature, min.-30 °C Storage temperature, max. 70 °C
Storage temperature, min.-40 °C

 Performance specification Number of phases input 1
 Input voltage type AC

Input voltage 230 V
Input current, max. 32 A

Charging power, max 7.4 kW
Adjustment accuracy 1 A
Charging current adjustable Yes
Charging current, min 6 A
Performance specification max. charging capacity of 7.4 kW @ 1-phase (230 V) grid connection, max. current 32 A

Depth 150 mm Depth (inches) 5.905 inch
Height 433 mm Height (inches) 17.047 inch
Width 268 mm Width (inches) 10.551 inch
Net weight 5,009 g
